With a Yagi, Panel, or Grid antenna and Internet Connection sharing with a router:
With a Omni antenna and a EVDO router. Wired desktop, wireless laptop and not using ICS:
Sample Layout Plans
Below I have two EVDO setups using a Yagi and a Omni antenna. If you do not use a antenna simply remove that part from the schematic.

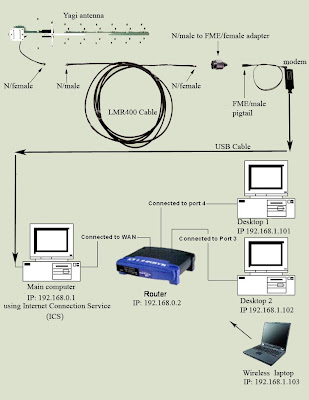

With a Yagi, Panel, or Grid antenna and Internet Connection sharing with a router:

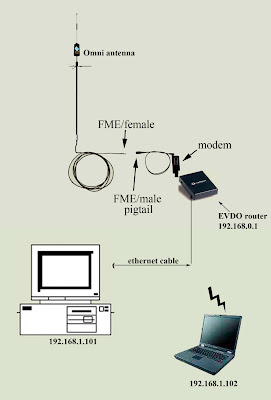

With a Omni antenna and a EVDO router. Wired desktop, wireless laptop and not using ICS:
With a Yagi, Panel, or Grid antenna and Internet Connection sharing with a router:
With a Omni antenna and a EVDO router. Wired desktop, wireless laptop and not using ICS:
Posted In
Simple layouts with IP addresses
| |
